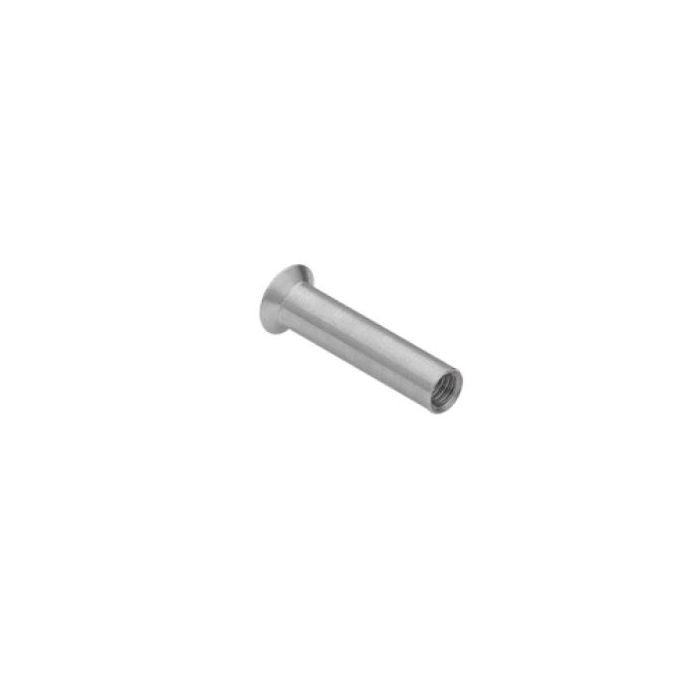

ASS Spann-Mutter, Senkschraube mit Innengewinde, rechts - 1.4401 / AISI316 / Edelstahl A4
| Artikelnummer | d1 mm | L mm | L3 mm | k mm | d2 mm | d3 mm | s mm |
|---|---|---|---|---|---|---|---|
| 3011600 | M 3 | 15 | 10,5 | 2,0 | 9,0 | 5,0 | 3,0 |
| 3011601 | M 4 | 15 | 10,5 | 2,0 | 9,0 | 5,5 | 3,0 |
| 3011602 | M 5 | 29 | 21,0 | 2,0 | 10,0 | 6,6 | 3,0 |
| 3011603 | M 6 | 29 | 21,0 | 2,7 | 12,0 | 8,0 | 4,0 |
| 3011604 | M 8 | 29 | 21,0 | 3,2 | 16,0 | 11,0 | 5,0 |
| 3011605 | M10 | 30 | 21,0 | 3,7 | 20,0 | 14,0 | 6,0 |
| Lieferzeit | 2-3 Tage |
|---|
