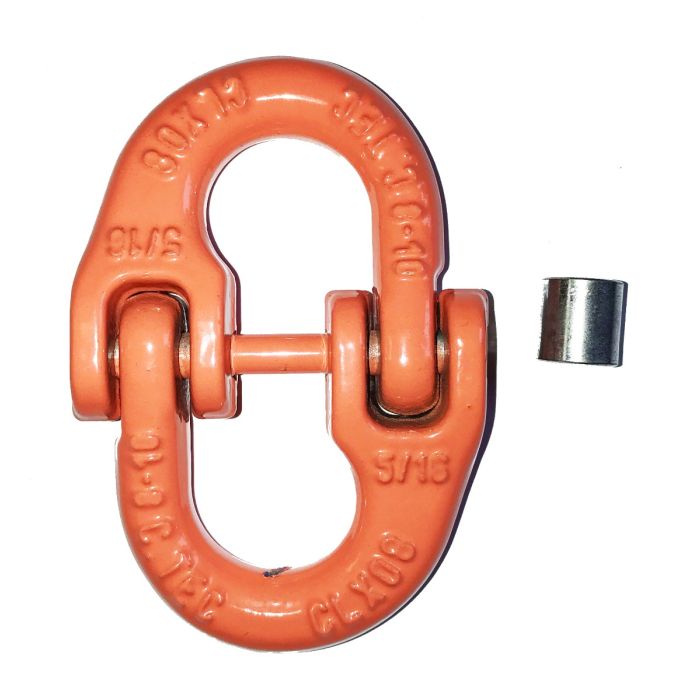

Verbindungsglied CARTEC 100
Lieferzeit
2-3 Tage
| Artikelnummer | Bezeichnung | Tragfähigkeit kg | A mm | C mm | O mm | R mm | P mm | S mm | Gewicht kg |
|---|---|---|---|---|---|---|---|---|---|
| 1170254 | 6-10 | 1400 | 14 | 18 | 18 | 45 | 8,0 | 7,5 | 0,07 |
| 1170253 | 7-10 | 1900 | 16 | 20 | 19 | 52 | 10,5 | 8,8 | 0,14 |
| 1170137 | 8-10 | 2500 | 18 | 25 | 23 | 62 | 12,0 | 9,5 | 0,20 |
| 1170138 | 10-10 | 4000 | 23 | 30 | 27 | 70 | 12,0 | 12,0 | 0,35 |
| 1170139 | 13-10 | 6700 | 27 | 36 | 34 | 90 | 20,0 | 17,0 | 0,74 |
| 1170320 | 16-10 | 10000 | 33 | 40 | 39 | 105 | 22,0 | 20,5 | 1,16 |
| 1170306 | 20-10 | 16000 | 42 | 46 | 46 | 113 | 29,0 | 25,0 | 2,50 |
| 1170140 | 22-10 | 19000 | 49 | 55 | 58 | 133 | 30,0 | 28,0 | 3,10 |
